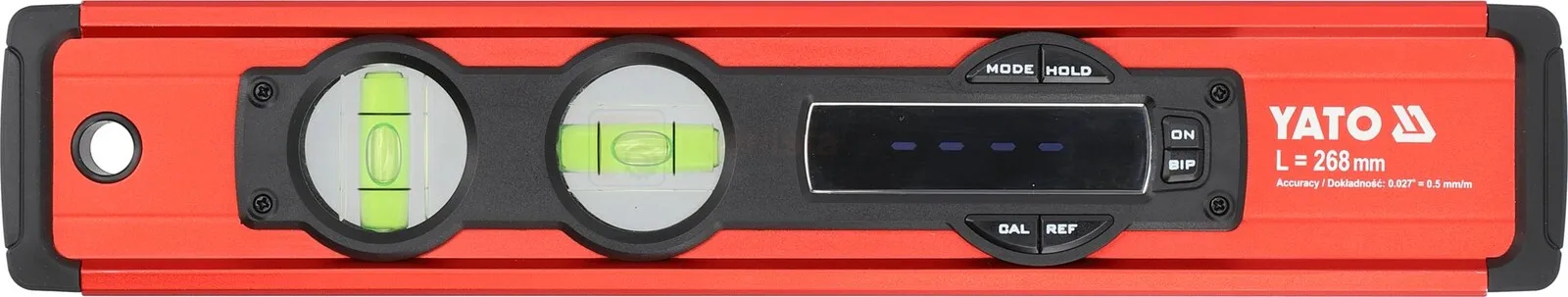

YATO digital spirit level with magnet 268 mm

Sound signal: yes
Storage temperature: -10 to +50 °C
Battery type: 2 × 1.5 V AAA
Screen type: LCD
Surface finish: powder coated, milled
Length: 268 mm
Weight: 265 g
Magnet: yes
Measurement accuracy: 0.05°
Protection class: IP65
Power supply: battery powered
Number of spirit levels: 2
Angle measurement accuracy: 0 / 90°: ±0.1°; 1°–89°: ±0.2°
Dimensions: 268 × 50 × 20 mm
Measuring angle range: 360° (4 × 90°)
Handle: yes
Automatic shutdown: 8 min
Operating temperature: 0 to 40 °C

The 268 mm (10.5") long magnetic electronic spirit level is an enhanced measuring instrument designed for precise control of the plane and angle in assembly, construction, and installation work.
The aluminum profile with a cross-section of 50 × 20 mm and a wall thickness of 1.4 mm ensures high rigidity, resistance to deformation, and measurement stability even during intensive use. Milled measuring surfaces ensure precise and firm contact with the surface being measured.

The electronic module with a large and clear LCD screen allows for quick reading of readings in different units of measurement, and a modern sensor ensures high repeatability of results. The digital measurement accuracy is ±0.1° in the 0° and 90° positions and ±0.2° in the remaining range, which corresponds to the accuracy of a classic spirit level of 0.5 mm/m (0.027°).
The IP65 protection class housing protects the electronics from dust and water splashes, allowing safe use even in demanding working conditions.

Working length: 268 mm – optimal for assembly and inspection work
Digital measurement accuracy: ±0.1° in 0°/90° positions and 0.5 mm/m in classic measurement
Resolution: 0.05° – accurate readings even for small deviations
2 bubble levels for horizontal and vertical standard control
4 measurement modes: mm/m, in/in, degrees (°), percentages (%)
REF function (0° reference point setting) – allows setting any measured surface to zero level and measuring deviations in relation to it
Large bright green backlit screen for better visibility
Strong magnets at the bottom allow for firm attachment to steel structures
Two precision-milled measuring surfaces for maximum accuracy
Strong aluminum profile 570 g/m, wall thickness 1.4 mm, cross-section 50 × 20 mm
Power supply: 2 × AAA battery – quick and easy replacement
Protection class IP65 – dust and moisture resistant
Hanging hole for easy storage
Weight: 265 g – optimal balance between strength and comfort
