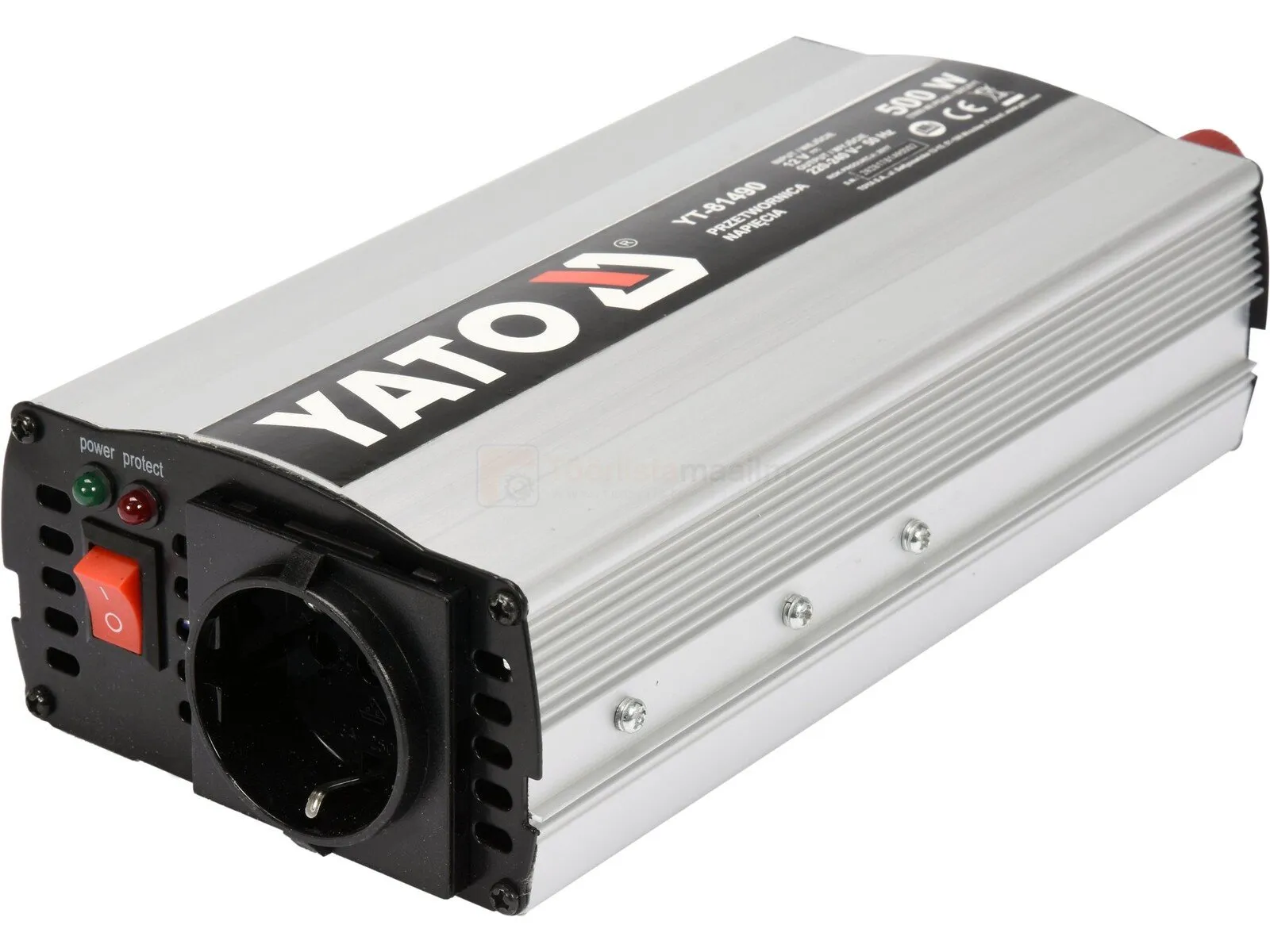

YATO inverter 12/230V 500W

Input voltage (nominal): 12 V DC

Input voltage operating range: 10,5 – 15 V DC

Output voltage (nominal): 230 V AC

Output voltage operating range: 220 – 240 V AC

Output frequency: 50 ± 10% Hz

Rated power (continuous): 500 W

Peak power: 1000 W

Efficiency: ≥80 %

Output signal: modified sine wave

No-load power consumption: <0>

Low battery voltage warning: 10 ± 0,5 V DC

Automatic shutdown at low voltage: 9,5 ± 0,5 V DC

Overload power: >760 W

Input voltage overload: 15 – 16 V DC

Thermal protection: >60 °C

Fuses: 32 A × 2

Protection class: IP20

Electrical insulation class: I

Weight: 0,73 kg

Voltage converter (inverter) 12V / 230V 500 W

A voltage converter is a device that allows the use of electrical appliances requiring 230 V mains power via a 12-volt car battery.

Thanks to its compact size, low weight, and high power, it is suitable for powering various electrical devices in places where there is no access to the power grid.

Low battery voltage indicator

The device is equipped with a fan that starts automatically during operation and helps to cool the converter's electronics

For powering electrical devices that require 230 V AC voltage, using a 12 V car battery or a vehicle's electrical system.

Input voltage (nominal): 12 V DC

Input voltage operating range: 10,5 – 15 V DC

Output voltage (nominal): 230 V AC

Output voltage operating range: 220 – 240 V AC

Output frequency: 50 ± 10% Hz

Rated power (continuous): 500 W

Peak power: 1000 W

Efficiency: ≥80 %

Output signal: modified sine wave

No-load power consumption: <0>

Low battery voltage warning: 10 ± 0,5 V DC

Automatic shutdown at low voltage: 9,5 ± 0,5 V DC

Overload power: >760 W

Input voltage overload: 15 – 16 V DC

Thermal protection: >60 °C

Fuses: 32 A × 2

Protection class: IP20

Electrical insulation class: I

Weight: 0,73 kg
